Rental – 480x480mm

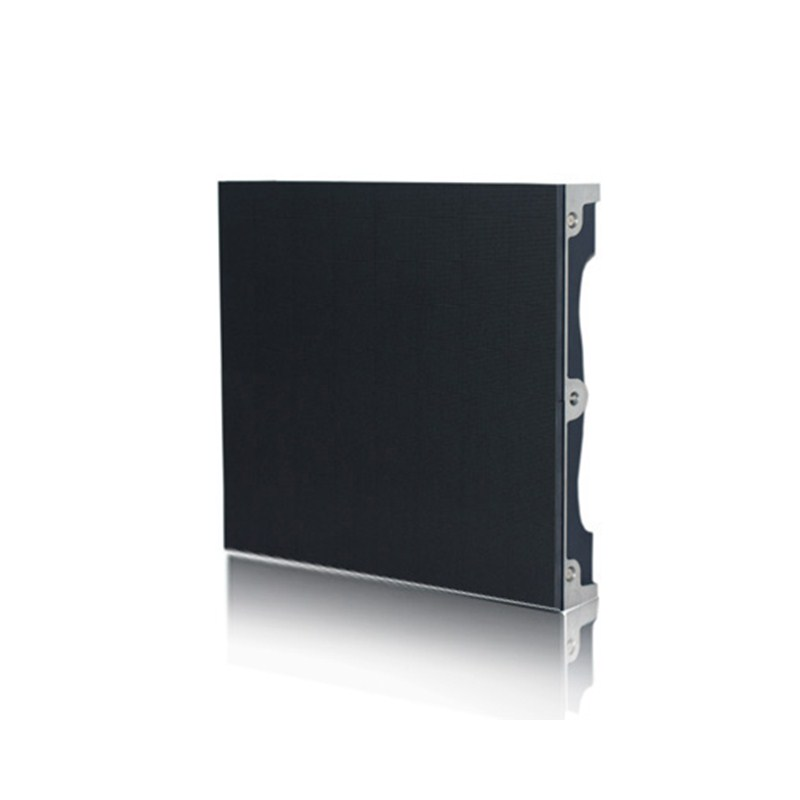

This is the indoor high definition screen with 480x480mm aluminum die-casting cabinet design. It is specially used for indoor LED TV studio with black-face SMD LEDs to get higher contrast and color uniformity. Also, this cabinet is able to be curved for thoese venues requiring concave shape to be fit for the stage background. No fan and no noise design makes it popular with indoor live broadcasting or conference room.
Technical Parameters
| Pixel Pitch | 2.5mm | 2.72mm | 4mm |
| Module Resolution | 64×64 | 88×88 | 60×60 |
| Module Size | 160mmx160mm | 240mmx240mm | 240mmx240mm |
| Cabinet Resolution | 192×192 | 176×176 | 240×240 |
| Cabinet Size/Weight | 480mmx480mm/8kg | ||
| Cabinet Material | Aluminum Extrusion Cabinet | ||
| Thickness | 80mm | ||
| Pixel Configuration | SMD2121 | SMD2121 | SMD2121 |
| Viewing Angle | 140°(H) / 140°(V) | ||
| Brightness | ≥1000 nits | ≥1000 nits | ≥1000 nits |
| Gray Scale | 65536 levels per color | ||
| Scan Mode | 1/32 | 1/22 | 1/10 |
| Refresh Rate | ≥1920Hz | ||
| Min. Viewing Distance | 3m | 3m | 4m |
| Input Power (max./avg.) | 500/200 watts per sqr.meter | ||
| Maintenance | rear service | ||
| IP Rating (front/back) | IP40/IP20 | IP40/IP20 | IP40/IP20 |
Here’s one concave LED screen with high refresh rate and high contrast which we’ve made for a LED TV studio project. The high compact aluminum die-casting LED panel in size 480x480mm is easy to be assembled into curve shape. The rugged aluminum panel comes with proven capability of heat dissipation and the low power consumption electronic design makes each panel without built-in fan. No fan means No noise, which is a must for indoor live broadcasting.
